    Manufacturer: Whirlwind

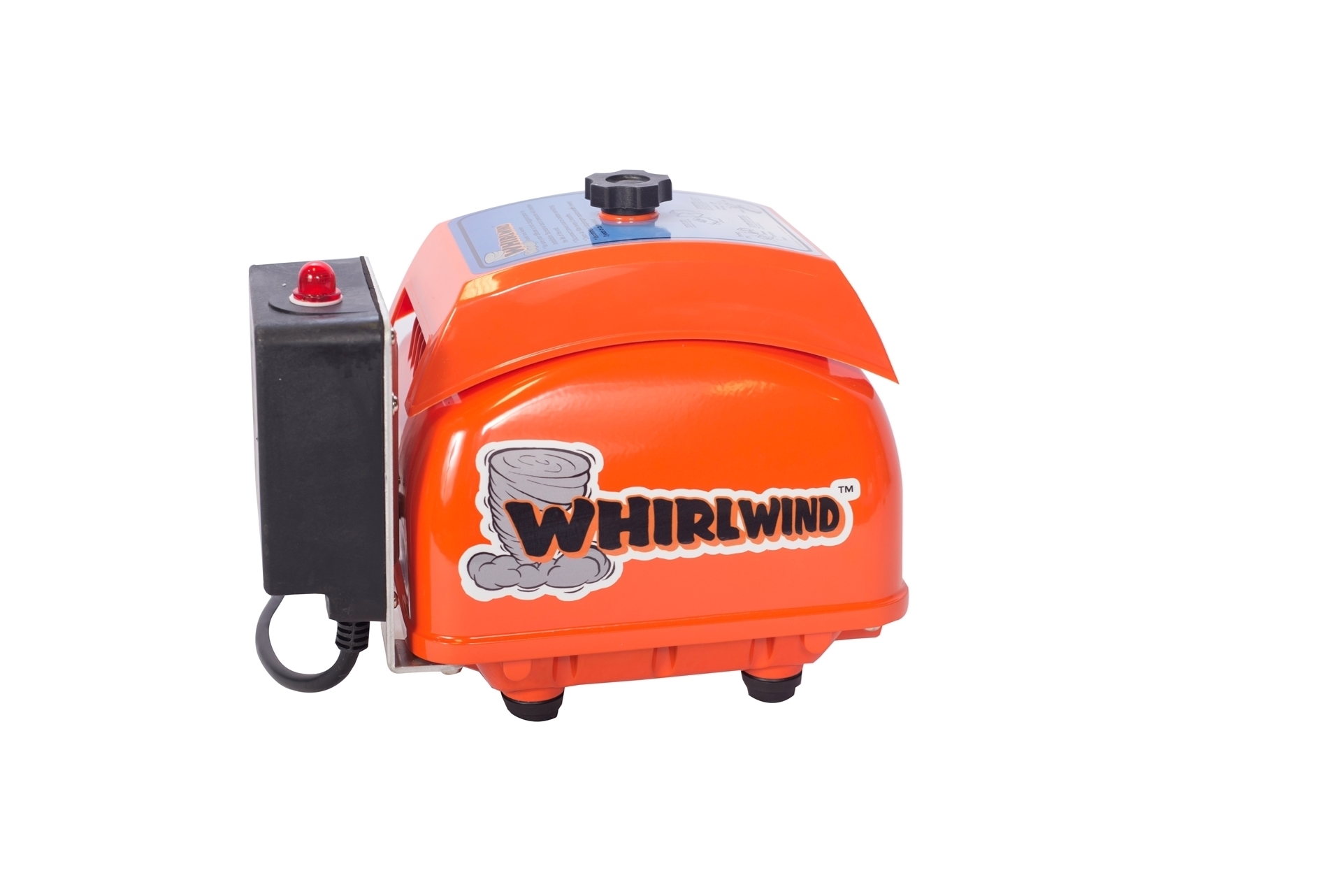

    Whirlwind 80 Septic Air Pump with Alarm

    Item #: WHISTA80AL
    $410.00
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Availability: In Stock, Ready to Ship!

    2-Year Limited Warranty

    On All Whirlwind Septic Air Pumps

    Free Shipping Over $30

    Same Day Shipping! Mon.-Fri.

    (If Ordered by 2:00 pm CST)

    100% Satisfaction Guarantee

    View Return/Exchange Policy

    Whirlwind® STA Series Septic Air Pumps are dependable, energy-efficient aerators that offer extremely quiet operation and excellent long life. Whirlwind® linear air pumps use diaphragms to compress and move air through heavy-duty tubing into the wastewater of your septic aeration tank. The Whirlwind® STA80AL Septic Air Pump operates 80 LPM at 2.18 PSI with a maximum continuous operating pressure of 4.35 PSI. The STA80AL also achieves a maximum open air flow of 3.9 CFM. Linear diaphragm air pumps are effective pumps for septic aeration and have been widely used for pond aeration, as well as applications in medical and laboratory settings.

    The Whirlwind® STA80AL Septic Air Pump is a compatible septic tank pump replacement for original equipment manufacturer (OEM) 80 LPM models including: Alita AL-80, Blue Diamond ET-80/ETA-80/ETS-80, FujiMAC MAC80R II, Hiblow HP-80, Secoh EL-80/JDK-80, and Thomas AP-80/AP-80H.

    Warranty

    We offer a 2-year limited warranty on all Whirlwind Septic Air Pumps.


    Product Details


    • Compatible replacement for major OEM brands including Alita AL-80, Blue Diamond ET-80/ETA-80/ETS-80, FujiMAC MAC80R II, Hiblow HP-80/HP-80A, Secoh EL-80/JDK-80, and Thomas AP-80/AP-80N
    • Consistent, reliable air flow
    • Built-in visual/audible low-pressure alarm
    • Alarm features three convenient settings: Test/Silence/Operate
    • Oversized diaphragms for longer pump life
    • Compact, weather-proof design
    • Quiet, cost-effective aeration
    • Easy-installation and maintenance
    • Powder-coated aluminum outer shell
    • Easy-access filter replacement
    • Applications for septic and pond aeration, medical, and laboratory
    • 6-ft power cable
    • Included: (1) Filter Pad, (1) Hose Connection, (2) Clamps, and User Manual

    Spec Sheet

    Owner's Manual

    Products specifications
    Max Air Flow
    3.9 CFM
    Operating PSI
    80 LPM @ 2.18 PSI
    Max Continuous Operating Pressure
    4.35 PSI
    AMP
    1.7
    Voltage
    120V
    Unit Weight
    16 lbs.
    Unit Dimensions
    10" x 7" x 7.5"

    Whirlwind STA Series Septic Air Pumps

    Whirlwind Septic Air Pumps are linear air pumps that use diaphragms to pump air through the unit. These flexible, rubber membranes are attached on each side of a magnetic actuating rod, or “shuttle.” The pump’s motor utilizes an electromagnetic current to move the shuttle back and forth. This motion expands and contracts the diaphragms, compressing and forcing air through a hose into the liquid effluent of your tank. At the end of the hose is a diffuser, which creates many small bubbles to distribute oxygen throughout the wastewater. This dissolved oxygen (DO) is vital for the aerobic bacteria to break down organic matter in the septic tank.

    Reliable Replacement

    Whirlwind septic linear air pumps are exceptionally reliable, providing consistent airflow to your septic aeration tank. These septic pumps are compatible to replace OEM brand septic tank air pumps.

    Low-Pressure Alarm

    The Whirlwind STA60AL septic air compressor comes with a built-in visual/audible alarm to alert you in the event of low-pressure due to weakened diaphragms. Whirlwind linear air compressors have an exceptionally long lifespan, however, over time the diaphragms will weaken and eventually need replacement. The alarm has a light that will illuminate, and a buzzer will sound.

    The alarm comes with three settings: Test/Silence/Operate. “Test” allows you to check that the alarm light and buzzer sound work properly. “Silence” allows you to mute the buzzer. This is a convenient feature as it may take a few days before you are able to determine the cause of the alarm and find the solution. “Operate” is the setting for normal use. If the visual/audible alarm sounds in this setting, it indicates that your pump requires servicing.

    Easy to Maintain

    Whirlwind septic aeration pump motors have no bearings or other moving parts that require lubrication. With this oil-less system, only minor maintenance is necessary. Regularly cleaning and/or replacing the filter is easily accomplished using the hand-adjustable knob located on the top of the pump.

    Diaphragms will eventually weaken and need replacement. “Rebuilding” your pump by installing new diaphragms essentially restores your pump to “new” condition.

    Oversized Diaphragms

    The STA80AL Whirlwind linear diaphragm air pump features extra-large diaphragms.  The increased surface area allows more air to pass through the unit with less wear on the rubber membranes. Less strain means a longer-lasting life for your linear air pump.

    Quiet, Cost-Effective Aeration

    Whirlwind STA Series septic air pumps offer a high rate of aeration while consuming much less energy than most aerators on the market. Amperage is a useful indicator of energy consumption and the STA80AL draws only 1.7 Amps with an open flow of 3.9 CFM.

    Another marker of highly efficient machines is noise level. Linear air pumps are known for their quiet, low-cost operation. Durable, anti-vibration rubber feet suppress noise and keep the Whirlwind STA80AL septic aerator firmly in place.

    Compact, Weather-Proof Design

    Whirlwind septic linear air pumps are extremely compact pumps. With their minimal footprint, they easily fit on top of the septic tank lid. The Whirlwind STA80AL Septic Air Pump is constructed with a lightweight, powder-coated aluminum housing for better temperature handling and corrosion-resistance. STA80AL linear air pumps are safe to install exposed to the elements but can be covered with fake rocks or other properly vented enclosures.



    24-Hour Operation

    Whirlwind linear diaphragm air pumps are designed to run continuously or on a timer for intermittent use. If you choose a timed option, Septic Tank Parts recommends cycling the pump on a “two hours on/two hours off” schedule and not to keep the pump off for longer than two hours.

    Other Applications

    The quiet operation, low energy consumption, and small footprint of the Whirlwind linear air compressors makes them desirable aerators for indoor growing systems such as hydroponics, aquaculture, aquascaping, aquaponics, or as air pumps for large aquariums. Whirlwind linear air compressors are also effective pond aeration pumps.

    Overview

    • Compatible replacement for major OEM brands including Alita AL-80, Blue Diamond ET-80/ETA-80/ETS-80, FujiMAC MAC80R II, Hiblow HP-80/HP-80A, Secoh EL-80/JDK-80, and Thomas AP-80/AP-80N
    • Consistent, reliable air flow
    • Built-in visual/audible low-pressure alarm
    • Alarm features three convenient settings: Test/Silence/Operate
    • Oversized diaphragms for longer pump life
    • Compact, weather-proof design
    • Quiet, cost-effective aeration
    • Easy-installation and maintenance
    • Powder-coated aluminum outer shell
    • Easy-access filter replacement
    • Applications for septic and pond aeration, medical, and laboratory
    • 6-ft power cable
    • Included: (1) Filter Pad, (1) Hose Connection, (2) Clamps, and User Manual

    Spec Sheet

    Owner's Manual

    Specifications

    Products specifications
    Max Air Flow
    3.9 CFM
    Operating PSI
    80 LPM @ 2.18 PSI
    Max Continuous Operating Pressure
    4.35 PSI
    AMP
    1.7
    Voltage
    120V
    Unit Weight
    16 lbs.
    Unit Dimensions
    10" x 7" x 7.5"
